| Type |
Photo |
Series |
Dimensions
（mm) |
Frequency
range |
Operature Temperature |
Supply Voltage |
Frequency
Tolerance |
PDF文档 |
| HC-49/U |
 |
C1 |
11.05 x 4.65 x 13.46 |
1.8432MHz ~ 150MHz |
-20~+70℃, -40~+85℃ |
|
|
 |

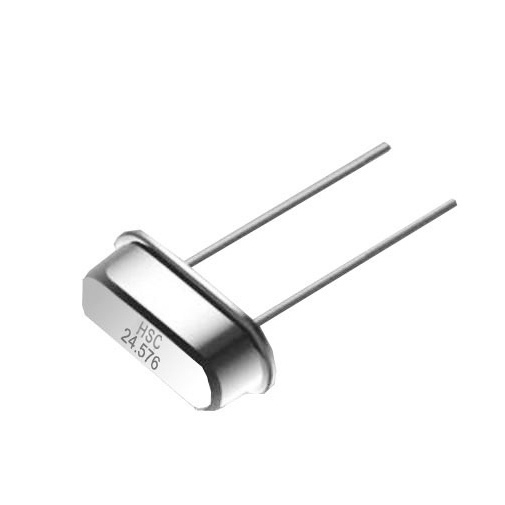

HC-49/S
HC-49/SS |
 |
C2
C2 |
11.05 x 4.65 x H |
3.0MHz ~ 151MHz |
-20~+70℃, -40~+85℃ |
|
|
|

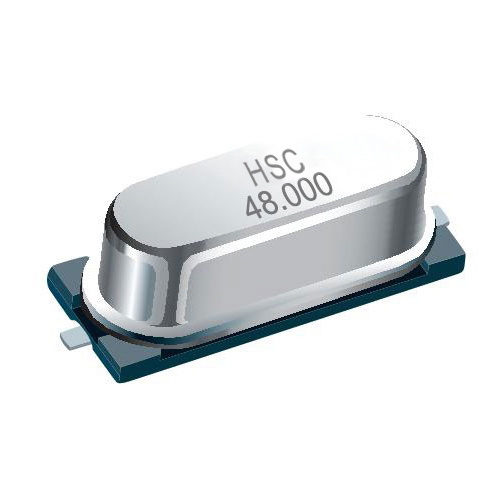

HC-49/SMD
HC-49/SSMD |
 |
C3
C4 |
12.3 x 4.7 x H |
1.8432 ~ 152MHz |
-20~+70℃, -40~+85℃ |
|
|
|

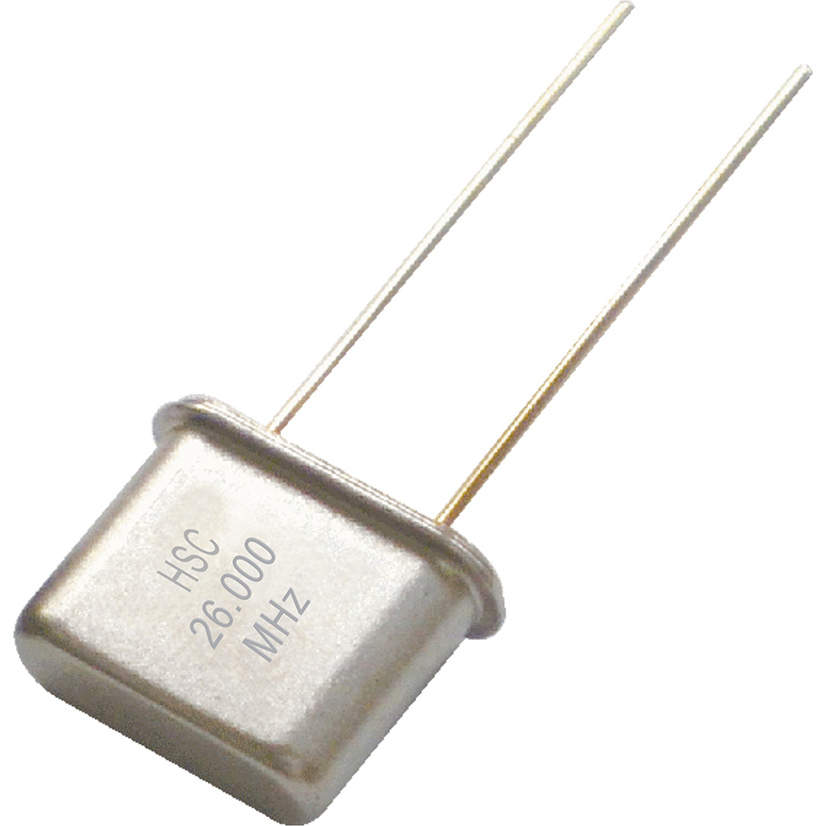

UM-1
UM-5 |
 |
U1
U5 |
7.8×3.2×H |
4MHz ~ 200MHz |
-40~+85℃ |
|
|
|
| M49SMD |
 |
MC |
7.0×4.0 |
6.000MHz~48.000MHz~ |
-20~+70℃, -40~+85℃ |
|
|
|

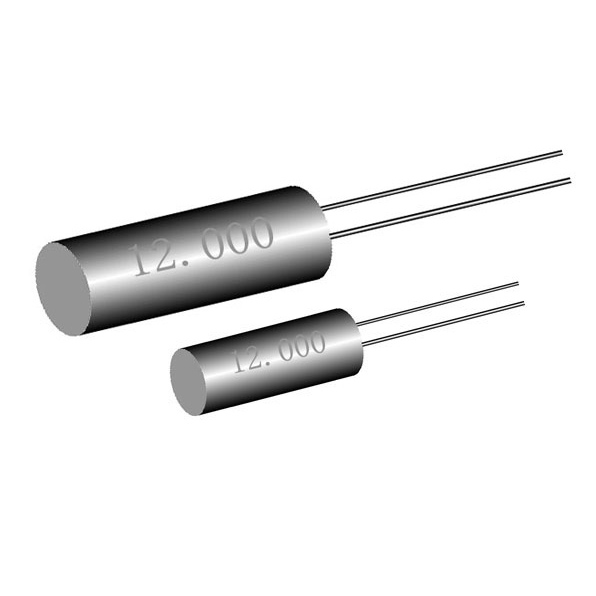

DT26
DT38 |
 |
C7
C8 |
2.0×6.0
3.0×8.0 |
3.579MHz ~ 50MHz |
-20~+70℃ |
|
|
|
| SMD 1612 |
 |
D8 |
1.6 x 1.2 x 0.40 |
20MHz ~ 54 MHz |
-20~+70℃, -40~+85℃ |
|
|
|
| SMD 2016 |
 |
D7 |
2.0 x 1.6 x 0.45 |
20MHz ~ 54 MHz |
-20~+70℃, -40~+85℃ |
|
|
|
| SMD 2520 |
 |
D6 |
2.5 x 2.0 x 0.55 |
12MHz ~ 54 MHz |
-20~+70℃, -40~+85℃ |
|
|
|
| SMD 3225 |
 |
D5 |
3.2 x 2.5 x 0.8 |
8MHz ~ 54 MHz |
-20~+70℃, -40~+85℃ |
|
|
|
| SMD 5032 |
 |
D4 |
5.0×3.2×0.90 |
7.6MHz ~ 100MHz |
-20~+70℃, -40~+85℃ |
|
|
|

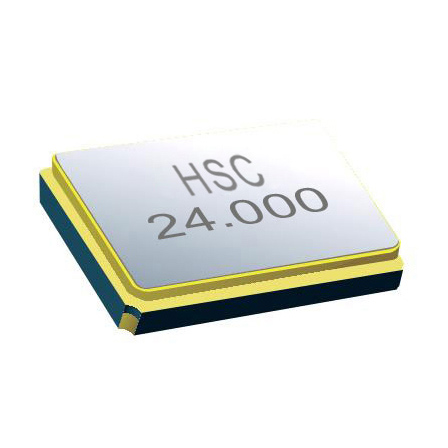

| SMD 7050 |
 |
D2 |
7.0×5.0×1.0 |
6MHz ~ 160MHz |
-20~+70℃, -40~+85℃ |
|
|
|

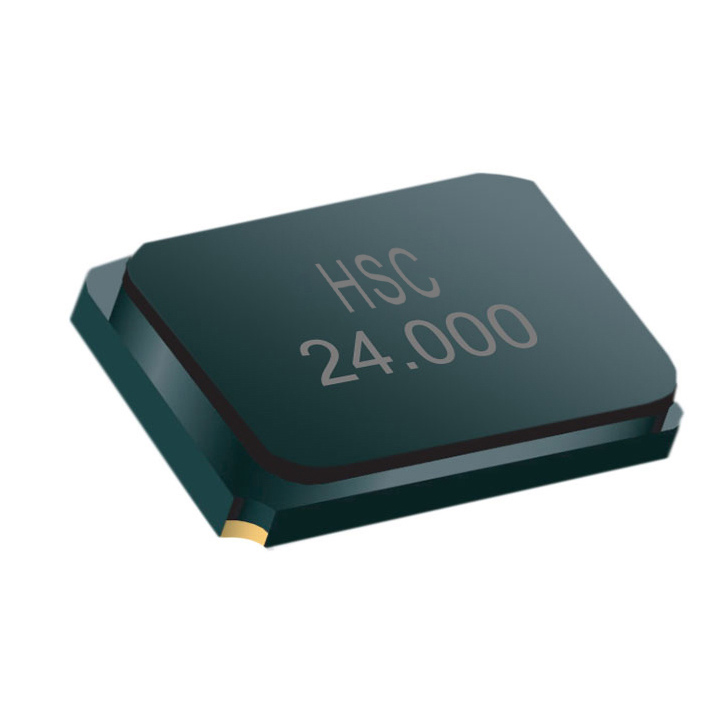

| Glass SMD 3225 |
 |
G5 |
3.2×2.5×0.80 |
8MHz ~ 54 MHz |
-20~+70℃, -40~+85℃ |
|
|
|

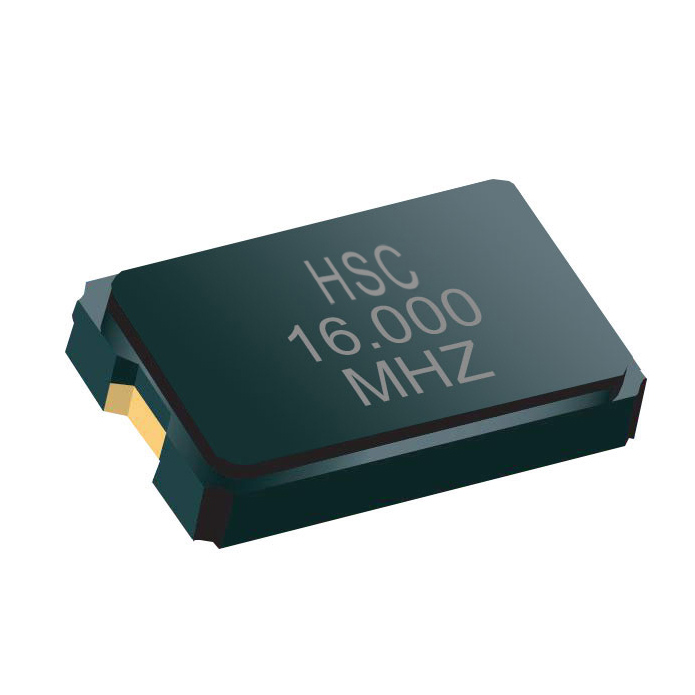

| Glass SMD 5032 |
 |
G4 |
5.0×3.2×1.10 |
7.6MHz ~ 100MHz |
-20~+70℃, -40~+85℃ |
|
|
|
| SMD 1612 |
 |
T8 |
1.6×1.0×0.5 |
32.768kHz |
-40~+85℃ |
|
|
|
|
|
|
